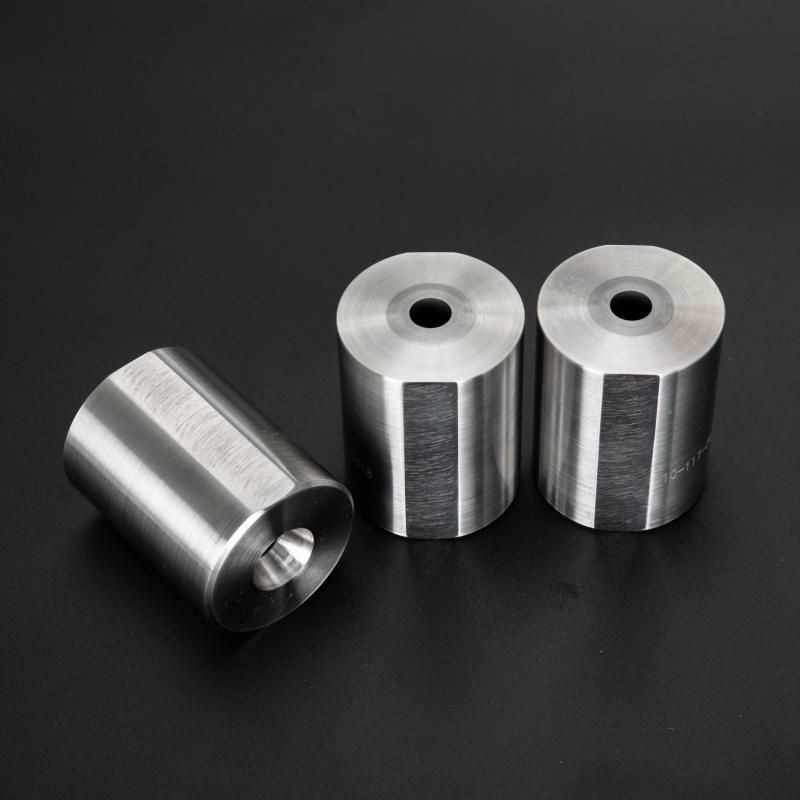

What is an Inner Cutting Die?
An Inner Cutting Die is a precision tool used in manufacturing processes to cut, shape, or form materials from the inside of a workpiece. Unlike external dies that work on the outer surfaces, Inner Cutting Dies are designed to perform operations such as punching, blanking, or forming within the interior of a material. These dies are typically made from high-grade tool steel (e.g., D2, A2, or M2 with hardness ratings of 58-62 HRC) and are engineered to withstand high-pressure operations while maintaining dimensional accuracy within ±0.005 mm.
Key Characteristics of Inner Cutting Dies:
Precision Engineering: Inner cutting dies are manufactured with tight tolerances, often achieving concentricity within 0.002 mm and surface finishes of Ra 0.4 μm or better.
Material Hardness: Typically heat-treated to 58-62 HRC using vacuum hardening processes to ensure wear resistance and longevity.
Cutting Edge Geometry: Features optimized clearance angles (usually 5°-10°) and land widths (0.05-0.15 mm) for efficient material separation.
Thermal Stability: Designed to maintain dimensional stability within 0.003 mm/mm even at operating temperatures up to 300°C.
Load Capacity: Can withstand cutting forces up to 1500 N/mm² depending on material and design.
Applications of Inner Cutting Dies
Inner cutting dies find extensive use across various industries where precision internal cutting operations are required:
Automotive Industry: Used for manufacturing precision components like valve seats (tolerances of ±0.01 mm), fuel injector nozzles, and transmission components with production rates up to 5000 parts/hour.
Electronics Manufacturing: Essential for creating precise openings in connector housings (typical hole diameters of 0.3-5.0 mm) and semiconductor lead frames with positional accuracy of ±0.005 mm.
Aerospace Components: Employed in turbine blade cooling hole drilling (hole diameters from 0.1-2.0 mm) and structural component fabrication where material thickness can range from 0.5-25 mm.
Medical Device Production: Used for creating micro-features in surgical instruments (features as small as 0.05 mm) and implant components with surface finishes down to Ra 0.2 μm.
Consumer Goods: Applied in the production of precision parts for appliances, with typical production volumes exceeding 1 million cycles per die life.
Maintenance Procedures for Inner Cutting Dies
Proper maintenance is crucial for extending the service life of inner cutting dies and maintaining their precision:
Cleaning Procedures:
After each production run, clean the die with a specialized solvent (e.g., isopropyl alcohol) using ultrasonic cleaning for 5-10 minutes at 40-60 kHz.
Remove all residual material using brass or nylon brushes (hardness < 100 HB) to prevent scratching.
For Carbide Dies, use pH-neutral cleaners to prevent binder corrosion.
Inspection Protocol:
Measure critical dimensions weekly using coordinate measuring machines (CMM) with 0.001 mm resolution.
Check for micro-fractures using 10x-50x magnification and dye penetrant inspection every 50,000 cycles.
Monitor edge radius wear; typically regrind when radius exceeds 0.02 mm beyond specification.
Lubrication Requirements:
Apply high-performance die lubricant (viscosity 80-120 SUS at 40°C) before each shift.
For high-speed operations (>500 SPM), use EP additives with sulfur content of 1.5-3.0%.
Lubricate guide posts with ISO VG 32 oil, applying 2-3 drops every 8 hours of operation.
Storage Conditions:
Store in controlled environments (20±2°C, 40-60% RH) with VCI (Vapor Corrosion Inhibitor) protection.
For long-term storage (>30 days), coat with rust preventive oil (film thickness 10-15 μm).
Use dedicated racks with protective padding (shore hardness 70-80A) to prevent edge damage.
Sharpening and Reconditioning:
Perform regrinding when burr height exceeds 5% of material thickness or edge radius increases by 20%.
Use diamond grinding wheels (mesh size 180-400) for Carbide Dies at speeds of 15-25 m/s.
After sharpening, polish with diamond paste (3-9 μm grit) to restore surface finish.
Reapply coatings (such as TiN or AlCrN) when wear exceeds 0.005 mm in critical areas.
