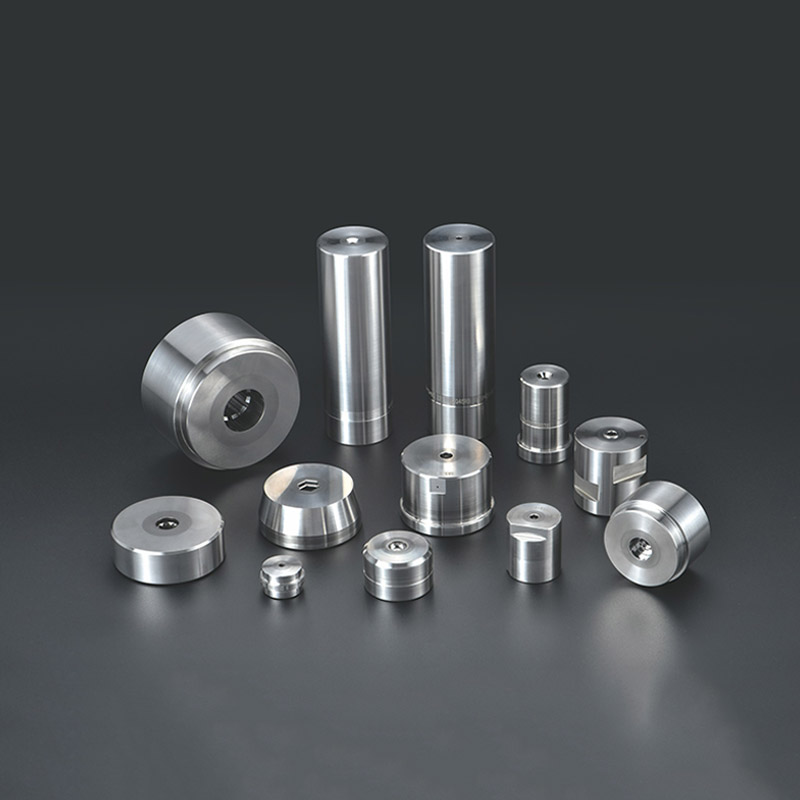

Tungsten Carbide Dies are essential tooling components used in high-precision forming, cold heading, wire drawing, punching, and extrusion processes. Manufactured from premium Tungsten Carbide (WC), these dies offer exceptional hardness, superior wear resistance, and extended service life, making them the industry standard for producing fasteners, metal parts, rods, and tubes with high accuracy and efficiency.
What Are Tungsten Carbide Dies?
Tungsten Carbide Dies are shaping tools made from sintered tungsten carbide and cobalt binder. Compared to traditional steel dies, tungsten carbide provides higher compressive strength and better resistance to abrasion, making it ideal for heavy-duty, high-speed production environments.
These dies are commonly used in:
Wire Drawing
Nail & Screw Cold Heading
Bolt and Nut Forming
Extrusion and Stamping
Key Features & Performance Advantages
| Feature | Benefit |
|---|---|
| Ultra-High Hardness | Withstands extreme pressure and impact |
| Superior Wear Resistance | Long service life, reduced downtime |
| Excellent Heat Resistance | Suitable for high-speed, continuous production |
| High Dimensional Accuracy | Ensures product consistency and surface finish |
| Anti-Deformation & Anti-Cracking | Stable under heavy load and cyclic stress |
Material Grades & Customization
Tungsten Carbide Dies are available in various grades optimized for different applications:
| Grade | Properties | Application Focus |
|---|---|---|
| YG6 | High hardness | Fine wire drawing |
| YG8 | Balanced hardness & toughness | General forming |
| YG15 | High toughness | Cold heading, heavy impact |
| Customized PVD/DLC Coated | Low friction, anti-sticking | Long service life |
Manufacturing Process
Powder Preparation & Pressing
Sintering at High Temperature
CNC Precision Machining
Grinding and Polishing
Surface Coating (TiN, TiCN, DLC - Optional)
Each die is engineered to meet strict tolerance requirements (±0.002mm) and optimized surface roughness (Ra ≤ 0.2 μm).
Application Industries
Fastener Manufacturing
– Screws, bolts, rivets, nuts forming
Metal Wire & Tube Production
– Steel, copper, aluminum wire drawing
Automotive & Aerospace Parts
– Cold-forged precision components
Electronics & Micro Components
– Small shaft, pin, and connector forming
Why Choose Tungsten Carbide Dies?
| Advantage | Customer Benefit |
|---|---|
| Extended Tool Life | Lower replacement cost |
| High Productivity | Less downtime, stable production |
| Precision Control | Reduced defect rate |
| Versatile Application | Compatible with multiple metals |
| Cost Efficiency | Long-term savings on tooling |
Quality Assurance
To ensure optimal performance, each Tungsten Carbide Die undergoes:
Hardness & Density Testing
Crack and Stress Resistance Inspection
Dimensional Accuracy Measurement
Trial Coating & Performance Testing
Customization Options Available
We provide OEM & ODM services with tailored specifications:
Inner/Outer Diameter
Die Profile (Round, Hexagonal, Square, Special Shape)
Tolerance & Surface Finish
Coating Options (TiN, TiAlN, DLC)
Complete Die Sets for Cold Heading Machines
Tungsten Carbide Dies are the backbone of modern precision forming technology. With outstanding durability, accuracy, and performance under extreme conditions, they significantly enhance productivity and reduce maintenance costs in high-volume manufacturing.
If you are seeking high-quality, long-life Tungsten Carbide Dies for cold heading, wire drawing, or metal forming, partnering with a professional die manufacturer ensures stability, precision, and maximum return on investment.
