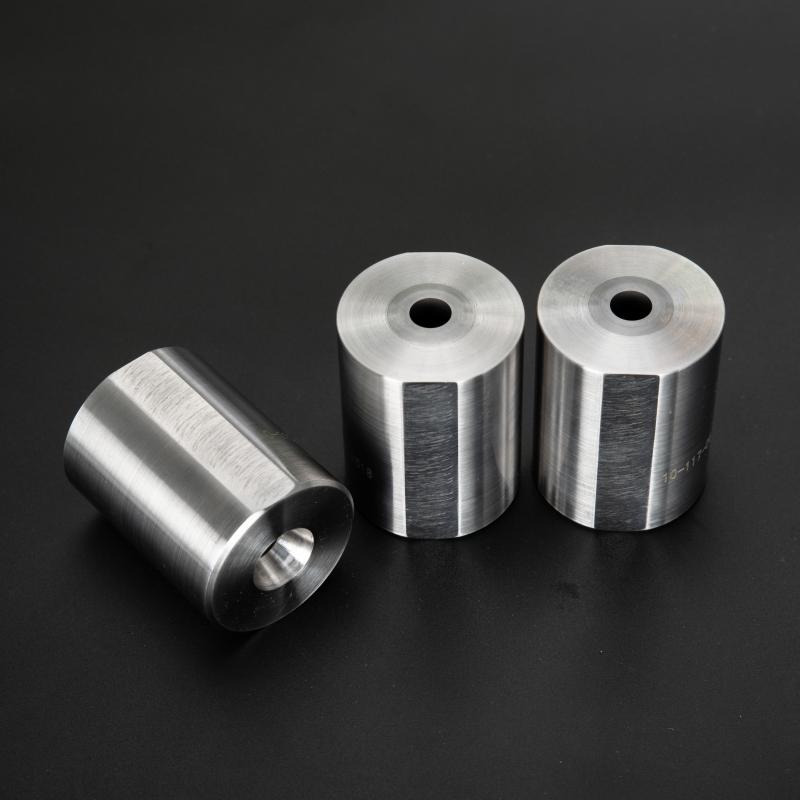

In modern manufacturing, precision and repeatability are key to ensuring product quality and production efficiency. An Inner Cutting Die—also known as an Inner Die, Inner Punching Die, or Internal Cutting Die—is a specialized cutting tool used to create internal shapes, holes, notches, and contours in various materials such as metal sheets, plastics, rubber, textiles, composites, and gasket materials. These dies play a vital role in high-volume industrial production, where accuracy and durability directly affect overall cost and output.
As a precision inner cutting die manufacturer, we provide Custom Inner Cutting Die solutions tailored to different industries and production requirements, supporting both OEM and ODM projects.
What Is an Inner Cutting Die Used For?
An Inner Cutting Die is primarily used for internal feature punching or trimming. Unlike external trimming dies that cut the outer dimensions of a workpiece, this tool is designed for inside-area removal, ensuring clean, smooth, and dimensionally accurate internal geometries.
Typical Applications Include:
Metal stamping for automotive and appliance components
Electronics parts requiring micro-precision internal structures
Rubber and silicone gasket manufacturing
Plastic components trimming and inner-hole punching
Medical device internal part molding and finishing
Wherever precision internal shaping is required, a Precision Inner Cutting Die plays a critical role.
Key Advantages of Precision Inner Cutting Dies
| Advantage | Description |
|---|---|
| High Dimensional Accuracy | Ensures tight tolerance internal shapes, reducing rework. |
| Consistent Cutting Quality | Guarantees clean edges and burr-free finishes. |
| Long Tool Life | Made using high-hardness tool steel or Tungsten Carbide. |
| Adaptability to Many Materials | Metal, fabric, film, rubber, gasket sheet, composite materials. |
| Automation-Compatible | Suitable for high-speed punching and robotic production lines. |
Material Options for Inner Punching Dies
SKD11 / D2 (High wear resistance steel)
HSS (High-Speed Steel) for high-impact cutting
Tungsten Carbide for extreme durability and long service life
Surface treatments available: PVD coating, TiN coating, nitriding, vacuum heat treatment
These material and treatment combinations ensure exceptional stability even under continuous high-load production.
Why Choose a Custom Inner Cutting Die?
Every product design presents unique internal shapes and material thickness variations. A Custom Inner Die Cutting Tool allows for:
Optimized cutting clearance
Improved edge quality
Extended die lifespan
Higher production speed
Our OEM/ODM inner cutting die factory provides full customization—from design to precision machining to final testing.
Industries That Use Industrial Inner Cutting Dies
Automotive components manufacturing
Electronics and semiconductor assembly
Packaging and sealing ring production
Footwear and textile processing
Medical and aerospace component fabrication
Where precision matters, a Custom Inner Cutting Die ensures reliable output.
Why Choose Us as Your Inner Cutting Die Manufacturer?
15+ Years of Die Manufacturing Experience
CNC + Wire EDM + Precision Grinding Production Capability
Strict Dimensional Tolerance Control
Fast Sample Lead Time & Stable Mass Production Support
OEM / ODM & Custom Project Engineering Support
We work closely with customers to deliver high-performance industrial inner cutting dies that reduce production downtime and increase throughput.
The Inner Cutting Die is a small but critical component of modern manufacturing workflows. From precision internal trimming to high-speed automated punching, selecting a high-quality die ensures not only better product performance but also cost efficiency over the product lifecycle. Partnering with a professional Custom Inner Die Supplier ensures the die is engineered for durability, precision, and production compatibility.
